Multi-View  &  Splitter  Processor

The GeoBox processor enables seamless multi-source command, allowing effortless management and dynamic display of various video inputs across a unified screen environment

S902 is a 4 to 2 UHD Quad-View processor that can display up to four 4K2K@60Hz sources on one or two UHD displays simultaneously. It supports flexible image positioning, sizing, cropping and overlapping. The processor supports up to 4096*2160@60Hz with 4:4:4 chroma sampling.

Front and back views of a GeoBox S902 HDMI quad-view processor with a black metal casing, various input and output ports, and control buttons and indicators.

S902

Diagram showing the layout of a S902 LED display system with sources, an LED controller, and examples of different layout configurations with multiple images.
Diagram of a video processing setup showing four HDMI input sources, a GeoBox S902 device, and four display screens. The input sources include a BrightSign device, a DVD player, a server, and a camera, all feeding into the GeoBox S902, which then outputs to four screens showing various images.
Collage of four images: a mountain and lake scene with clouds, a silhouette of a runner at sunset, a close-up of pink cherry blossoms, and a lion's face against a dark background.
Text discussing multiple window displays, their flexible resizing, cropping, aspect ratio adjustment, and overlapping priority settings.

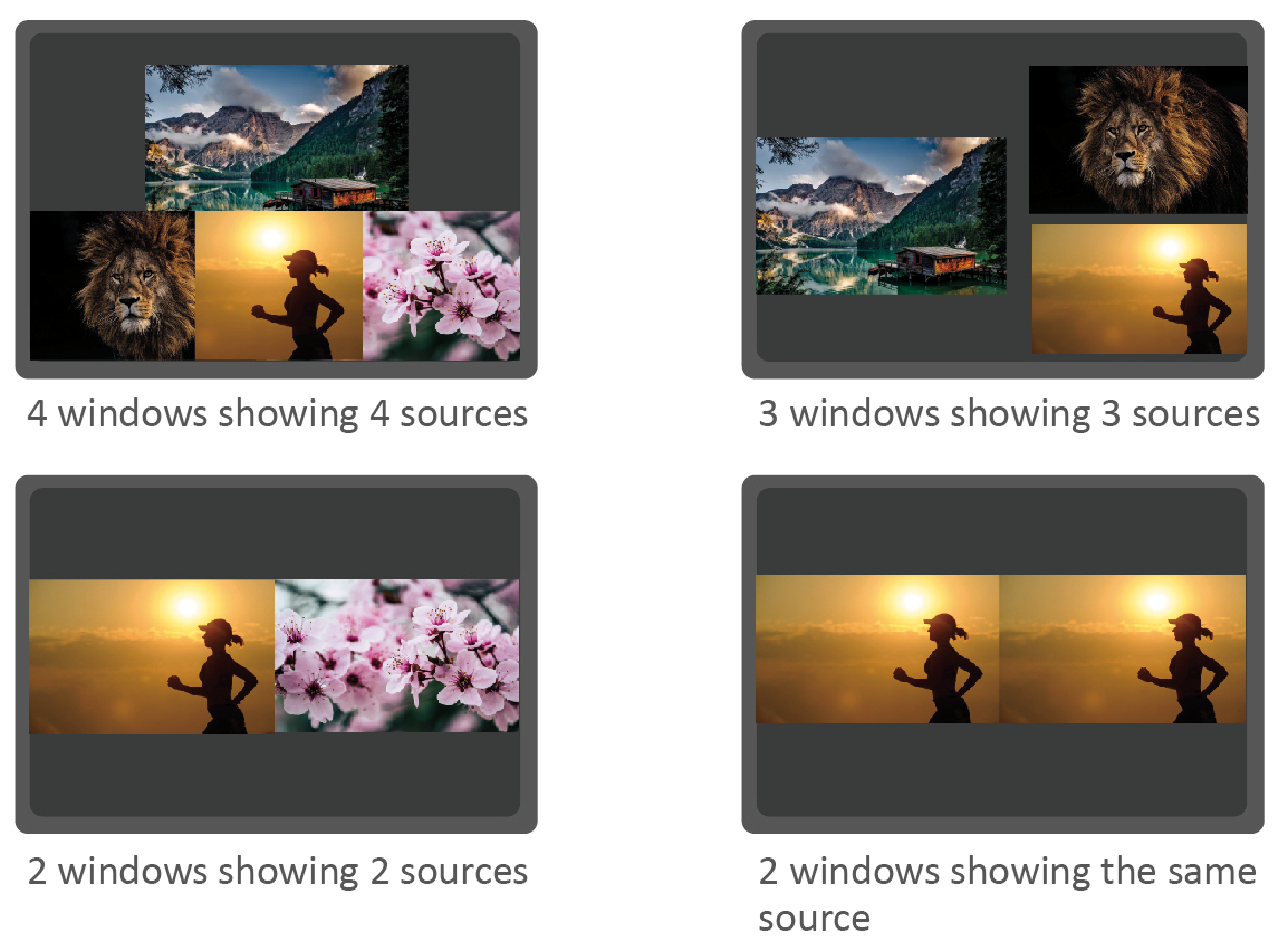

Four panels showing different arrangements of four images, including a mountain lake, a lion, a person running at sunset, and cherry blossoms. Each panel demonstrates various window configurations and source displays.
Click it

The S914 is a versatile and robust HDMI 2.0b distribution amplifier designed to solve complex signal management and compatibility issues in professional video setups. It functions as a 1-input, 4-output splitter capable of handling the maximum 18 Gbps bandwidth required for true 4K @ 60Hz 4:4:4 content. Beyond simple splitting, the S914 includes intelligent features like EDID management, advanced Color Space Conversion (CSC) for mixed display environments, full HDCP 2.2/1.x repeater/converter capability to eliminate security handshake issues, and proprietary Equalization & re-Lock Technology to ensure signal integrity over long or poor-quality cables.

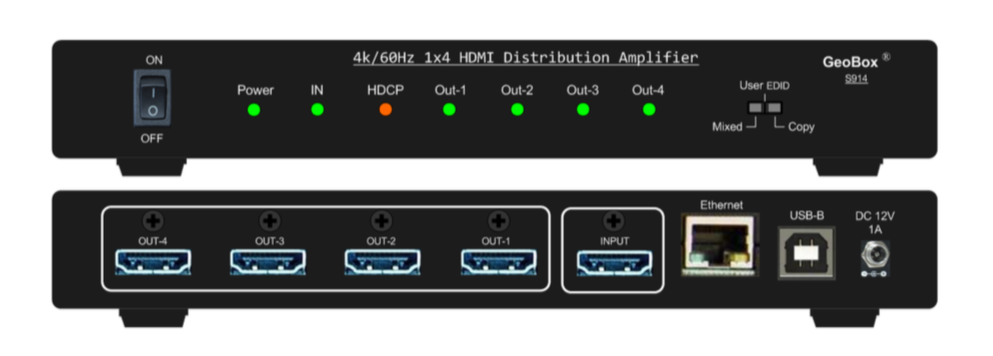

A black 4K HDMI distribution amplifier with multiple ports and indicator lights, labeled GeoBox S914. It has a power switch, power and input indicator lights, four output ports for HDMI, an Ethernet port, a USB-B port, and a 12V power input.

S914

Diagram showing a setup with four monitors connected to a S914 hub, which is connected to various devices including a Blu-ray player, gaming console, laptop, and desktop computer. The monitors display different resolutions: two are FHD and two are 4K2K, with connections marked accordingly.
Click It

The G904 is a powerful, multi-function, quad-channel signal processor and multiviewer designed for advanced video wall and display systems. Featuring ten HDMI 2.0 inputs (supporting up to 8K/2K @ 30Hz or 4K @ 60Hz) and four HDMI 2.0 UHD outputs, a single G904 unit can simultaneously display all-in-one content across an entire video wall or deliver discrete true 4K/60 content to four separate monitors. Its special system design allows it to function as a powerful multiviewer, displaying up to seven contents on a single UHD monitor, with cascading support for large-scale systems or advanced multi-window layouts (e.g., 4, 6, 9, or 16 split views). In addition to PIP/POP and multiviewer capabilities, the G904 integrates switching, format conversion, scaling, image manipulation (flip/rotation), and programmable output resolution/refresh rate specifically for video wall, UHD monitor, and LED display applications.

UHD video processor with multiple input and output ports, colorful indicator lights, and a remote control

G904

Diagram of a video distribution system showing two profiles. Profile 1 has a cityscape image labeled 'All-in-one 4K/60'. Profile 2 contains four images: a circuit board, a bowl of ramen, colorful paint splashes, and a galaxy scene, each labeled '4K/60'. The system includes a device labeled 'G904' connected via orange arrows to each profile with '4K/60' labeled.
A four by three grid of images depicting racing cars, a digital blue energy swirl, a fiber optic circuit board, blue and silver fighter jets, a climber on a mountain, and a world map. An animated diagram shows the connection from G904 to an output screen labeled 4K/60, with arrows indicating data flow and labels A through H.
Diagram of a display system showing six images labeled A through F, connected via the GeoBox device with labels indicating 4K/60 resolution, with an arrow pointing to the central image of a spaceship.
Click It
A GeoBox AV equipment device with multiple indicator lights, buttons, and ports, accompanied by a remote control.

S901

The S901 is a high-grade 4K seamless switcher and quad-split multi-viewer designed for large-scale and LED display systems. It features five inputs (3x HDMI 2.0b, 2x DP 1.4) and supports exceptional output flexibility, including horizontal resolutions up to 7680 and vertical resolutions up to 3840, with selectable refresh rates up to 120Hz. Integrating a comprehensive suite of features—such as PIP/POP, image rotation, scaling, cropping, and 3/4 split-view—the S901 also includes seamless switching via dedicated front panel buttons. This eliminates projector re-search time and ensures immediate, clean transitions, making it an ideal solution for any demanding 4K/60 display application.

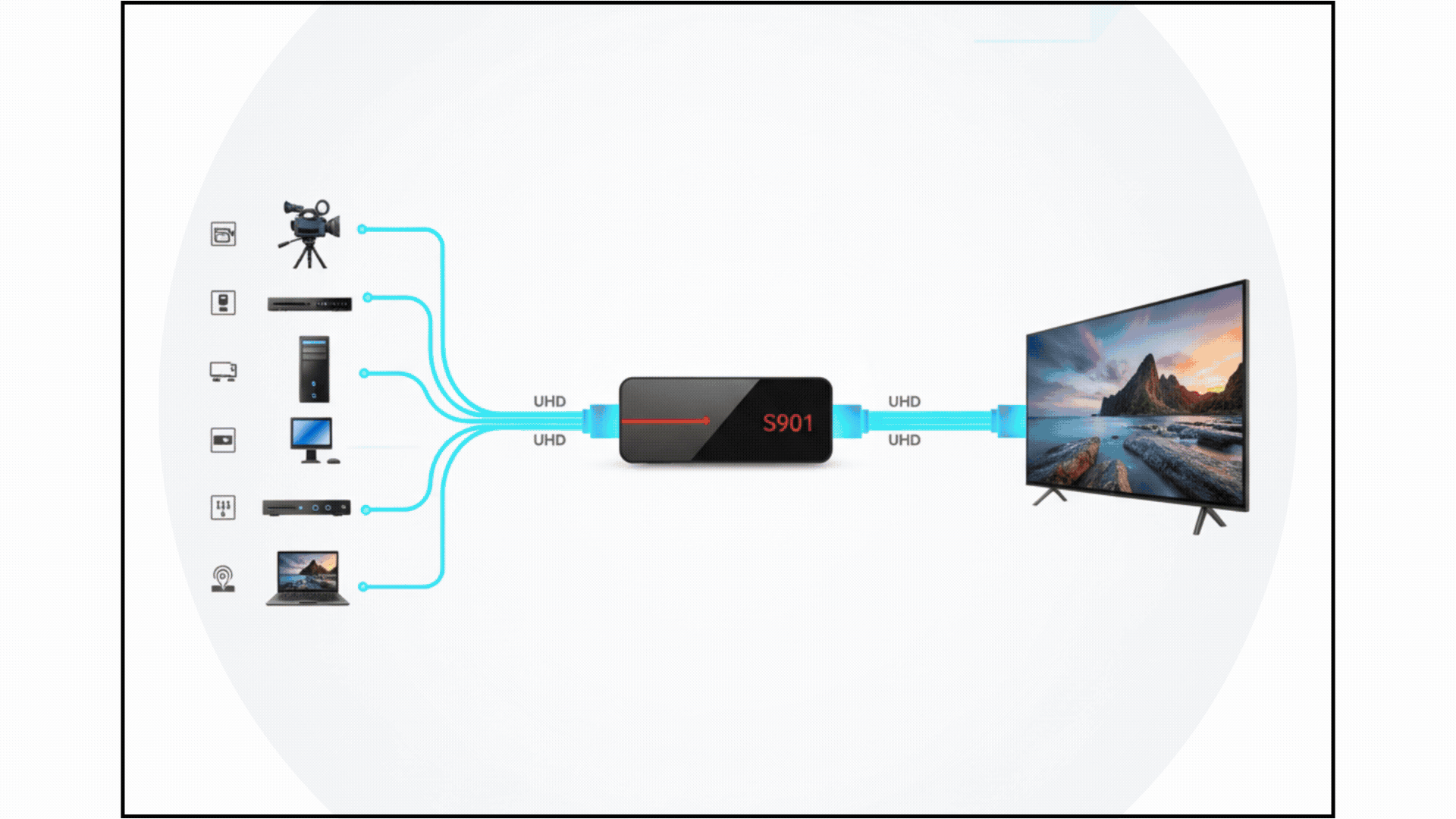

Diagram showing multiple devices connected to a transmission hub labeled S901 which outputs a single UHD signal to a television screen.
click It
