The GeoBox UD100 series provides pure hardware control for highly sophisticated projector systems, handling edge blending, warping, stacking, and masking on flat, curved, or full 360∘ screens. This system is highly scalable: models range from the UD101 (1 projector) up to the UD104 (4 projectors). It supports massive input resolutions like 7680x2160 @ 30Hz and 7680x1200 @ 60Hz, with a maximum output of 4096x2160 @ 60Hz. The UD100 series offers incredibly flexible configurations for a three-projector edge blending system. Users can display one seamless all-in-one image, or a powerful 2+1 setup (two projectors blended plus one independent display).

The M810 is an upgraded model of the M800 series, significantly enhancing geometry alignment and control. This pure hardware unit allows for exceptionally sophisticated projector systems, supporting up to 7680×2160 @ 30Hz input and WUXGA output resolution. Its key upgrades include 17×9 geometry alignment and 120×68 fine-tune control points. The M810 utilizes a new GCT PC tool with a more friendly interface that works seamlessly with IR control. Designed for complex warp and edge blending without the need for an external PC, one box can control 1 to 4 projectors, and multiple units can be easily cascaded for truly large-scale immersive displays.

The G810 Series significantly upgrades professional edge blending and geometry correction, serving as a pure-hardware successor to the G800 line. The core enhancement features impressive 17×9 geometry alignment and 120×68 fine-tune control points, ensuring flawless image perfection on curved screens or complex surfaces. Users benefit from high flexibility and accuracy via the new GCT PC Tool, which operates simultaneously with the IR controller, while the system accepts ultra-high input resolutions up to 7680×2160 at 30Hz. This series is scalable, with the G812 offering dual-channel processing for warping and stacking, G814 four channels for large-scale immersive installations.

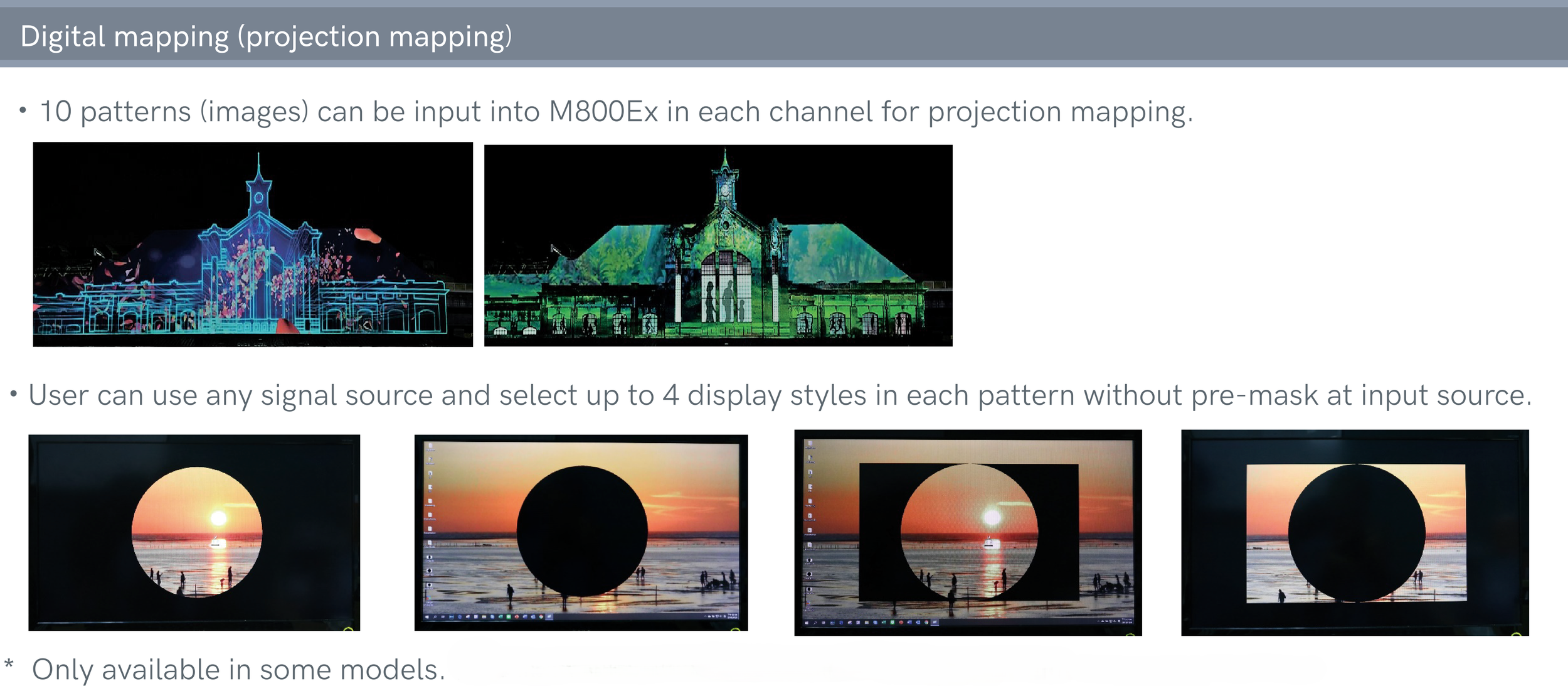

The M800Ex models combine all features of the M810 edge blending processor with robust, built-in projection mapping capabilities. For mapping, users can upload up to 10 monochrome BMP image patterns to use with any video source, each offering 4 display styles and customizable background colors. Users gain extensive creative flexibility by being able to overlay a single 256-color pattern across image without pre-masking content. Combining multiple M800Ex units allows achieving sophisticated mapping effects, preset display time. This seamless integration of edge blending and mapping makes the M800Ex ideal for large-scale projection projects.

GeoBox technology dramatically unlocks maximum versatility for projection applications, enabling the precise application of desired imagery onto virtually any surface to create unique and captivating effects. It assists users in solving complex geometric challenges like correcting images in large off-axis projections, achieving perfect alignment on curved screens, and accurately mapping images onto challenging structures such as 90∘ corner walls and non-smooth surfaces. Furthermore, GeoBox provides absolute precise control over the final output, facilitating easy changes to the aspect ratio and detailed image cropping to highlight specific regions.
